Infrastructure Overview

This page provides a conceptual overview of the Shokunin Platform’s cloud infrastructure. It is intended to help contributors understand the deployment topology without requiring access to vendor dashboards or credentials. For operational procedures, deployment steps, or secret management, refer to terraform/README.md in the repository.

Infrastructure at a Glance

The Shokunin Platform uses two hosting providers:

Provider	Role
Vercel	Hosts the Next.js frontend (serverless, edge-distributed)
GCP (Google Cloud Platform)	Provides data persistence, compute, storage, and AI model access

Architecture Diagram

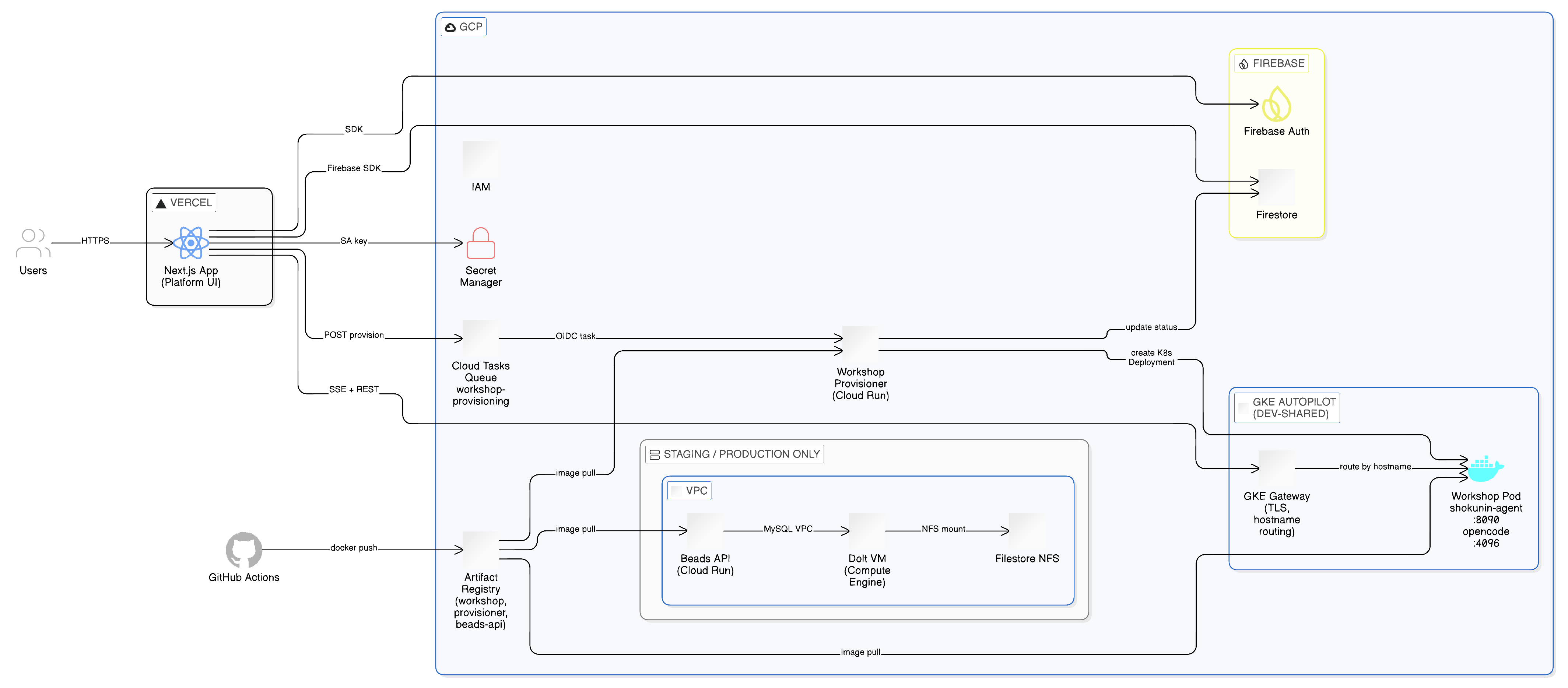

The diagram below shows how the major components connect. It is derived from terraform/README.md.

Component Overview

Vercel — Frontend Hosting

The Next.js app (v0-shokunin-ai-platform) is deployed to Vercel. Vercel provides:

Serverless Next.js runtime (App Router, API routes)
Global CDN for static assets
Preview deployments for pull requests

The frontend communicates with GCP services via HTTPS — it never talks to Dolt directly.

GCP Cloud Run — Beads API

The Beads API runs on Cloud Run and bridges HTTPS requests (from Vercel and the bd CLI) to the Dolt MySQL database over the private VPC.

Containerized; image stored in GCP Artifact Registry
Authenticates inbound requests via X-Beads-API-Key header
Egresses to the Dolt VM via the Serverless VPC Access connector

The Beads API Cloud Run service exists in the staging and production environments only. The dev-shared environment was decommissioned. Local development uses a Docker Compose beads-api container instead.

GCP Compute Engine — Dolt VM

The Dolt MySQL server runs on a GCE VM, not on Cloud Run. Dolt is a stateful MySQL-compatible database — it requires a persistent POSIX filesystem that Cloud Run cannot provide.

Machine type: e2-micro (staging), e2-small (production)
No public IP — reachable only from within the VPC
Startup script configures Dolt as a systemd service on first boot

The Dolt VM and Filestore exist in the staging and production environments only. Local development uses a Docker Compose beads-backend container.

GCP Filestore — Persistent Storage for Dolt

The Dolt VM mounts a Filestore NFS volume at /var/lib/dolt. This persists the database across VM reboots and re-provisions.

GCP GKE Autopilot — Workshop Containers

Workshop containers (shokunin-agent + OpenCode) run on a GKE Autopilot cluster managed in the dev-shared environment. GKE Autopilot provisions nodes automatically — no node pool configuration required. See GKE Autopilot and Workshop Container Ingress below for subdomain routing and the provisioning flow.

GCP Cloud Run — Workshop Provisioner

The Shokunin Provisioner (infrastructure/shokunin-provisioner/) is a Cloud Run service that dynamically creates Workshop Deployments and Services in tenant Kubernetes namespaces.

Triggered by POST /api/workshops/[workshopId]/provision via a Cloud Tasks queue
Authenticates inbound Cloud Tasks requests via OIDC token (SA: shokunin-{env}-provisioner-sa)
Creates a Kubernetes Deployment (shokunin-agent + OpenCode containers) and Service (ports 8090/4096) per workshop
Updates Firestore provisioning state: workshops/{workshopId}/provisioning/state

Firebase / Firestore — Application Data

The platform uses Firebase services for application data:

Service	Description
Firestore	Primary application database. Stores projects, workshops, agents, workflow nodes/edges, audit logs, user profiles, and provisioning state.
Firebase Auth	Authentication provider (planned: will be wired through the `shokunin-auth` adapter).

The Next.js app connects to Firestore and Firebase Auth directly via the Firebase SDK (no backend proxy).

GCP Secret Manager — Secrets

All platform secrets (API keys, database passwords, service account keys) are stored in GCP Secret Manager. Terraform is responsible for distributing them outward to Vercel, GitHub Actions, and Cloud Run — no secrets are set manually in those platforms. See Secrets & Identity Management for the full design: namespace architecture, identity map, secret flow pipeline, and developer onboarding.

GCP Artifact Registry — Container Images

Docker images for all services are stored in Artifact Registry. CI/CD (GitHub Actions) pushes new images on merge; GKE and Cloud Run pull from this registry.

Image	Service
`workshop:latest`	Workshop container (shokunin-agent + OpenCode via supervisord)
`shokunin-provisioner:latest`	Workshop Provisioner Cloud Run service
`beads-api:latest`	Beads task-tracking API

GCP IAM — Access Control

Service accounts and IAM roles control access between GCP services. Key accounts:

shokunin-dev-platform-sa — runs Terraform for all dev environments
shokunin-dev-gha-sa — GitHub Actions CI/CD via Workload Identity Federation (no stored keys)
shokunin-dev-provisioner-sa — Workshop Provisioner identity; receives Cloud Tasks OIDC tokens
shokunin-dev-firebase-admin — Firebase Admin SDK; also holds roles/run.viewer, roles/container.viewer, roles/cloudtasks.viewer for the Infrastructure Dashboard API route
shokunin-dev-vercel-caller-sa — authenticates Vercel runtime → GCP APIs

See Secrets & Identity Management for the complete identity map and IAM model.

Connectivity Summary

Users
  │
  ▼
Vercel (Next.js app)
  │ HTTPS
  ├──► GCP Cloud Run: Beads API ──MySQL (VPC)──► Dolt VM ──NFS──► Filestore
  │    (staging / production only)
  │
  ├──► Cloud Tasks queue → Shokunin Provisioner (Cloud Run)
  │                               │
  │                               └──► GKE: creates Workshop Deployment + Service
  │
  ├──► Firebase (Firestore SDK)
  │
  └──► Firebase (Auth SDK)

GKE Autopilot (dev-shared)
  └── Workshop Pods
      ├── shokunin-agent :8090  ◄── GKE Gateway → agent.<tenant>.<domain>
      └── opencode       :4096  ◄── GKE Gateway → opencode.<tenant>.<domain>

Terraform

All GCP resources are managed with Terraform in terraform/. The infrastructure is split across reusable modules and environment-scoped root configurations.

Multi-tier environment structure

The platform uses three shared environment tiers plus per-developer sandboxes and per-tenant roots:

Tier	Root	State prefix	Purpose
Dev-shared	`platform/environments/dev-shared/`	`platform/dev-shared`	VPC, Artifact Registry, GKE Autopilot, GKE Gateway, Workshop Provisioner — deployed once, team-owned
Staging	`platform/environments/staging/`	`platform/staging`	Full Beads stack (Dolt VM, Filestore, Cloud Run Beads API) for preview deployments
Production	`platform/environments/production/`	`platform/production`	Full Beads stack for production
Developer sandbox	`platform/environments/dev/`	`platform/dev/<handle>`	Per-developer Firestore database and Secret Manager access
Tenant	`terraform/tenants/`	`tenants/<tenant-id>`	Per-tenant GKE namespace, HTTPRoutes, and Workshop workload

Module structure

Resources are organised into single-purpose modules under platform/modules/:

Module	What it manages
`networking/`	VPC, subnet, Serverless VPC Access connector, firewall rules
`artifact-registry/`	Docker image registry
`storage/`	Filestore NFS instance (staging/production only)
`secret-manager/`	Secret Manager secrets for platform credentials
`iam/`	Service accounts and all IAM bindings
`bastion/`	Dolt VM and its reserved internal IP (staging/production only)
`cloud-run/`	Beads API Cloud Run service (staging/production only)
`gke-autopilot/`	GKE Autopilot cluster
`gke-gateway/`	Shared GKE Gateway resource (one per cluster)
`vercel-env/`	Pushes configuration and secrets to Vercel environment variables

Wrapper scripts

Always use ./terraform/scripts/tf or ./terraform/scripts/tf-tenant — they handle SA impersonation and config file wiring automatically:

# Shared dev environment
./terraform/scripts/tf dev-shared plan
./terraform/scripts/tf dev-shared apply

# Personal sandbox
./terraform/scripts/tf dev <your-handle> init
./terraform/scripts/tf dev <your-handle> plan

# Tenant infrastructure
./terraform/scripts/tf-tenant <tenant-id> plan
./terraform/scripts/tf-tenant <tenant-id> apply

Always run plan and review the output before apply. Never run terraform directly — the wrapper script ensures the correct service account is used and configuration files are wired correctly.

For full setup instructions including how to request infrastructure access, see terraform/README.md.

GCS infrastructure manifest

Every Terraform root writes an infra-manifest/{key}.json file to gs://shokunin-480309-tfstate/ on every apply. This allows runtime services and the Infrastructure Dashboard to discover resource names, SA emails, and endpoints without re-reading Terraform state.

Manifest key	Written by	Contains
`dev-shared`	`platform/environments/dev-shared/manifest.tf`	GKE cluster, Gateway, Provisioner URL/queue, SA emails, secret IDs
`staging`	`platform/environments/staging/manifest.tf`	Dolt VM, Beads API URL, SA emails
`production`	`platform/environments/production/manifest.tf`	Dolt VM, Beads API URL, SA emails
`tenant-{id}`	`terraform/tenants/manifest.tf`	Namespace, HTTPRoute names, agent/opencode endpoint URLs, workshop GSA email

The GcpInfraManifest TypeScript type in domains/infrastructure/types.ts defines the intended array-based schema for manifests consumed by the Infrastructure Dashboard. The Terraform manifest files currently write a flat nested structure — aligning them to the typed schema is in progress. Until then, the dashboard’s declared-resource sections fall back to live GCP API data only.

GKE Autopilot and Workshop Container Ingress

Workshop containers (shokunin-agent + OpenCode) run on GKE Autopilot and are exposed externally via a shared GKE Gateway (GKE Gateway API, not Ingress).

Subdomain routing

Each tenant gets two public subdomains routed through the shared Gateway:

Subdomain	Routes to	Port
`agent.<tenant>.<domain>`	Workshop service (shokunin-agent REST API)	8090
`opencode.<tenant>.<domain>`	Workshop service (OpenCode web API)	4096

Routing is hostname-based — no path routing. TLS terminates at the Gateway (Certificate Manager managed certificates). SSE/streaming responses are not buffered (BackendLBPolicy timeout: 3600 s, x-accel-buffering: no).

agentUrl in Firestore

The agentUrl field stored on the Workshop Firestore document holds the external Gateway URL — not an in-cluster DNS address. Example:

https://agent.acme-corp.dev.shokunin.app

This URL is written by the Next.js provision API route at provisioning time and used by the Agent Control Panel to target SSE connections, health polling, and deep links.

In-cluster services communicate directly via localhost:4096 (OpenCode) and localhost:8090 (shokunin-agent) since both processes run in the same pod.

Workshop provisioning flow

User clicks "Provision" in Agent Control Panel
  │
  ▼
POST /api/workshops/[workshopId]/provision
  │  idempotency check (canStartProvisioning)
  │  writes status = "queued" to Firestore
  │  writes agentUrl to Workshop document
  ▼
Cloud Tasks queue: shokunin-{env}-workshop-provisioning
  │  OIDC-authenticated HTTP task (provisioner-sa)
  ▼
Shokunin Provisioner (Cloud Run)
  │  creates K8s Deployment (shokunin-agent + opencode containers)
  │  creates K8s Service (ports 8090, 4096)
  │  updates Firestore status → "succeeded"
  ▼
GKE Gateway routes traffic to the new pod

Provisioning states: null → queued → running → succeeded / failed. The API returns 200 (no-op) when already queued or running, 202 when newly queued.

Terraform module topology

platform/environments/dev-shared/
  ├── module "gke"              ← GKE Autopilot cluster (platform/modules/gke-autopilot/)
  ├── module "gke_gateway"      ← Shared GKE Gateway resource (platform/modules/gke-gateway/)
  └── provisioner.tf            ← Cloud Tasks queue + Provisioner Cloud Run service

terraform/tenants/
  ├── module "namespace"        ← GKE namespace, KSA, GSA, resource quotas
  ├── module "gateway_routes"   ← Pre-created HTTPRoutes (agent.* + opencode.*)
  └── module "workload"         ← Workshop Deployment + Service + BEADS_DOLT_* env vars

See terraform/AGENTS.md for Terraform conventions and module structure.

Tenant Terraform

Each tenant’s Kubernetes resources are managed by a dedicated Terraform root at terraform/tenants/, applied independently per tenant.

What it provisions

GKE namespace — Kubernetes namespace tenant-{id}, Kubernetes Service Account (KSA), GCP Service Account (GSA) bound via Workload Identity, LimitRange, ResourceQuota
Gateway routes — Pre-creates HTTPRoute resources for agent.{tenant}.{domain} and opencode.{tenant}.{domain} before any workshop is provisioned, so DNS and TLS certificate issuance can begin immediately
Workshop workload — Workshop Deployment and Service; injects BEADS_DOLT_* environment variables when beads_dolt_host is set in the tenant config

Applying tenant infrastructure

./terraform/scripts/tf-tenant <tenant-id> plan
./terraform/scripts/tf-tenant <tenant-id> apply

Tenant configuration lives at terraform/config/tenants/<tenant-id>.tfvars.

BEADS_DOLT_* environment variables

When a tenant config sets beads_dolt_host, the tenant-workload module injects five environment variables into the Workshop container:

Variable	Purpose
`BEADS_DOLT_HOST`	MySQL host of the tenant’s Dolt instance
`BEADS_DOLT_PORT`	MySQL port (default: 3306)
`BEADS_DOLT_USER`	MySQL user
`BEADS_DOLT_PASSWORD`	MySQL password
`BEADS_DOLT_DATABASE`	Database name (e.g. `beads_staging`)

These allow the shokunin-agent and bd CLI inside the workshop container to connect to the team’s shared Beads Dolt database.

Local vs. staging vs. production

Component	Local (Docker Compose)	Staging	Production
Dolt/Beads	`beads-backend` container on `localhost:3307`	GCP Dolt VM + Filestore	GCP Dolt VM + Filestore
Beads API	`beads-api` container on `localhost:8080`	GCP Cloud Run	GCP Cloud Run
Next.js	`bun run dev` on `localhost:3000`	Vercel (preview deployments)	Vercel (production)
Firestore	GCP Firestore `dev-<handle>`	GCP Firestore `staging`	GCP Firestore `production`
Workshop containers	Not applicable locally	GKE Autopilot (dev-shared cluster)	GKE Autopilot (dev-shared cluster)
Secrets	`.env` (populated by `scripts/env-sync`)	GCP Secret Manager	GCP Secret Manager
